DALI system components

The comfortable software for configuring DALI systems and for monitoring communication on the DALI bus.

Three multifunctional touch panels for manual control of LED, tunable white and RGBW luminaires (DT 6, DT 8, RGBWAF).

DALI rotary dimmer for controlling LED luminaires. For adjusting the brightness of DALI luminaires and switching them on and off, for controlling tunable white luminaires (DT8) or RGBW luminaires (DT8).

Functions like groups, scenarios and staircase control can be assigned to the cross switch with four push buttons via the DALI Cockpit software. Suitable for tunable white (TW) and colour control (CC).

DALI motion and light sensor Passive infrared motion and light sensor for indoor use that reacts to movement. Vertical opening angle of ± 46°, horizontal opening angle of ± 51°. Range of twelve metres. The measuring range of the light sensor is between 0 and 2500 lx. Configuration is carried out via the DALI Cockpit software.

DALI light sensor Indoor sensor with a measuring range between 0 and 2500 lx. Threshold values for performing switching commands can be set in the DALI Cockpit software.

DALI PIR motion and light sensor for detecting motion and brightness values. For controlling LED luminaires.

Passive infrared motion and light sensor. Suitable for interfaces as per Zhaga Book 18 Ed. 3.0.

The smart DALI controller allows wireless control and dimming of up to 15 DALI luminaires

• with a smartphone and the BEGA Smart app
• with a BEGA remote control
• with the Smart Rotary Dimmer

For controlling a relay contact via the DALI bus.

Module for connecting four conventional pushbuttons or switches to control DALI operating devices.

Module for connecting four potential-free pushbuttons or switches to control DALI operating devices.

Compact DALI-2 control module allows you to connect up to 4 EnOcean pushbuttons to the DALI system.

Control device for tunable white luminaires. Emulates the daylight curve (circadian curve). During the course of the day, the light is automatically controlled to be warmer or colder: warmer light in the morning and evening hours, colder light at noon time.

Program for storing four independent sequences that can be invoked via DALI control elements such as the DALI timer, DALI control module four-button/switch or DALI cross switch.

The DALI-2 sequencer module enables automatic time-based progression of command sequences. A sequence is a series of scenario calls or any string of commands.

For timer functions with up to 14 entries for invoking lighting scenarios for LED, tunable white and RGBW luminaires (DT6, DT8, RGBWAF, xy).

Control unit for automatic power reduction/night-time brightness reduction with integrated DALI power supply for up to nine standard DALI loads.

Power supply for the DALI operating devices and the control devices.

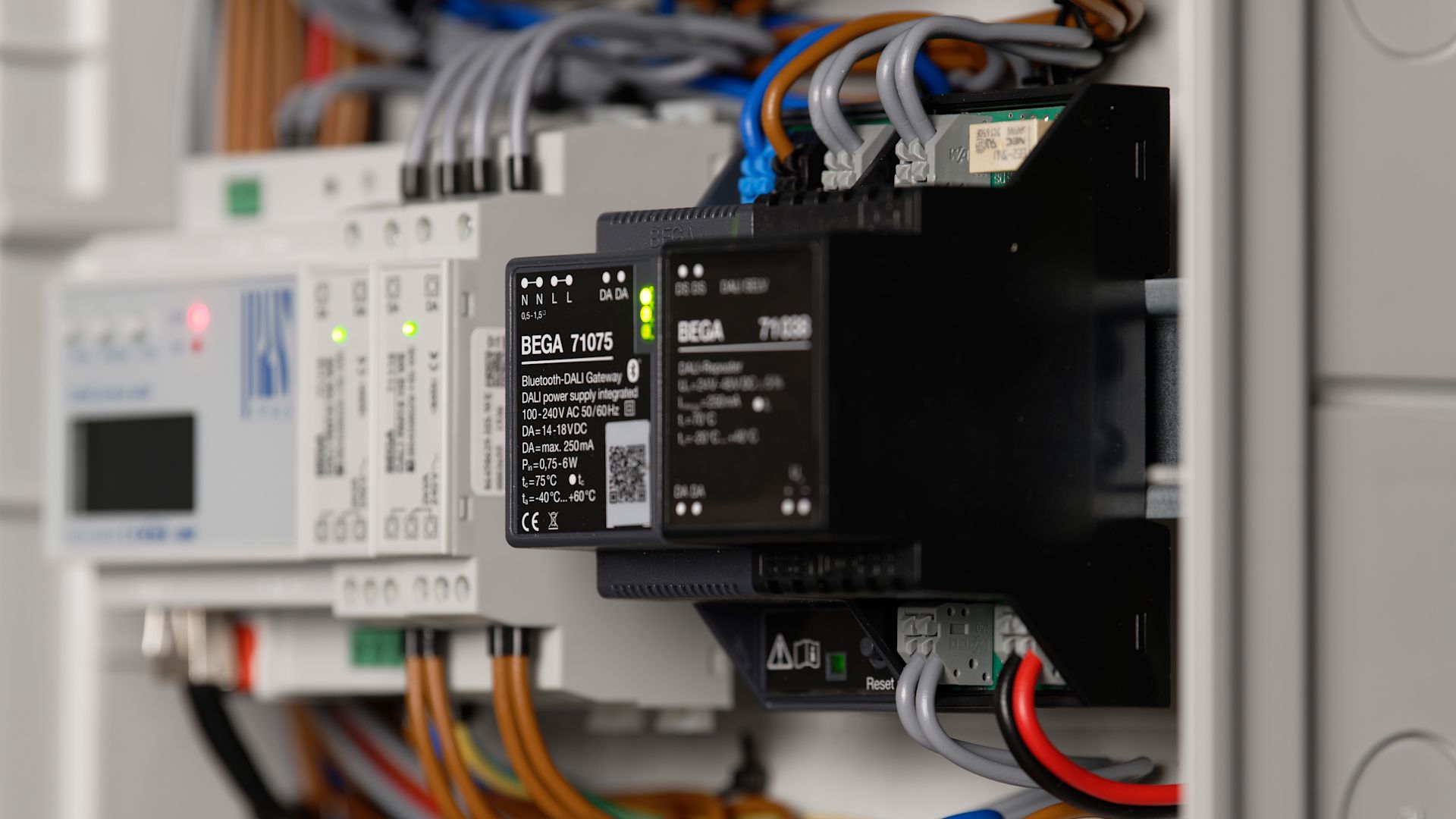

Enables the maximum cable length to be extended from 300 metres (DALI line) to 600 metres. Extension using a repeater is only possible once per DALI line.

Connection of the PC/laptop where the DALI Cockpit programming software is located to the DALI bus. Only required for programming.

For the commissioning and power supply of DALI operating devices and control components in a DALI line with max. 64 devices.

KNX/DALI gateway for the integration of 64 luminaires with DALI operating devices into a KNX system. Configuration of 16 DALI groups, of 16 DALI lighting scenarios, and of 16 sequences by means of an application program in the ETS software. DALI colour light control of tunable white and RGBW luminaires (DT8, RGBWAF, xy) can also be implemented in this way.

DALI programmer for the parametrisation of DALI devices. Four buttons can be programmed with DALI parameters. The components are conveniently configured and parametrised via the BEGA Tool app.
