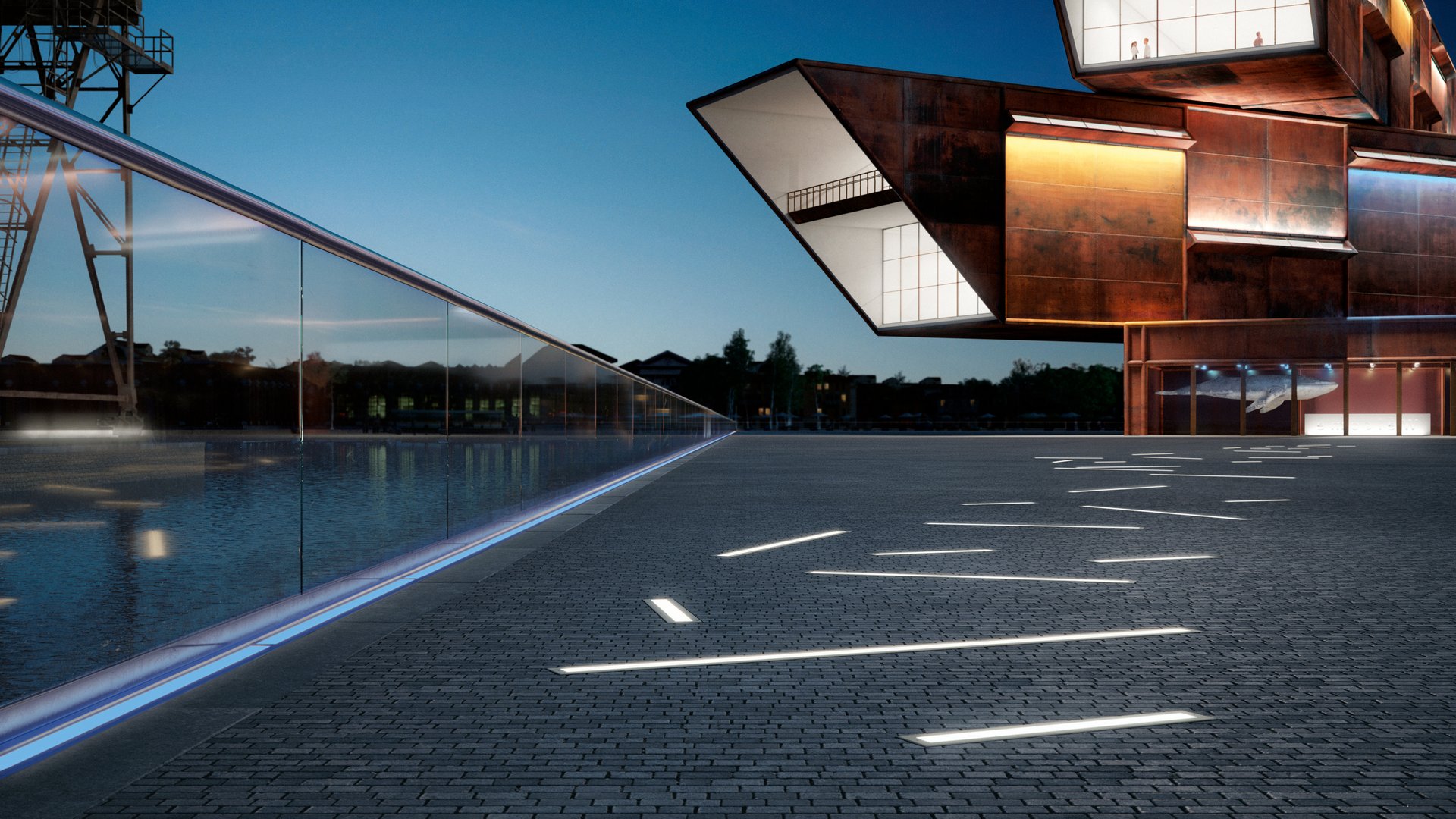

Drive-over in-ground luminaires with high light output for installation in paved ground surfaces – indoors and out.
Our patented reflectors (European Patent EP 3098504) enable perfect light deflection through intensive concentration of the light with maximum visual comfort.
The luminaires can be driven over by vehicles with pneumatic tyres.
Technical data
Pressure load 1000 kg
Protection class IP 67 BEGA Thermal Management®
Cover frames made of stainless steel Luminaire housing and installation housing made of aluminium and cast aluminium Safety glass Floodlight: Reflector surface made of pure aluminium BEGA Vortex Optics®
DALI-controllable power supply units
Water stop · Connecting cable
Before the luminaires are installed, a foundation including drainage must be provided by the customer to absorb the pressure loads of the luminaires.
20-year availability guarantee for replacement parts and LED modules
| LED | PSU | β | A | B | C | |||
|---|---|---|---|---|---|---|---|---|
| 84 156 K3 | 18.0 W | 1006 lm | DALI | 535 x 82 | 78 | 130 | ||
| 84 157 K3 | 35.6 W | 2029 lm | DALI | 1025 x 82 | 78 | 130 | ||
| 84 158 K3 | 53.0 W | 3234 lm | DALI | 1520 x 82 | 78 | 130 |
| LED | PSU | β | A | B | C | |||
|---|---|---|---|---|---|---|---|---|
| 84 159 K3 | 18.0 W | 1220 lm | DALI | 34° | 535 x 82 | 78 | 130 | |
| 84 160 K3 | 35.6 W | 2175 lm | DALI | 34° | 1025 x 82 | 78 | 130 | |
| 84 161 K3 | 53.0 W | 3404 lm | DALI | 34° | 1520 x 82 | 78 | 130 |
| LED | PSU | β | A | B | C | |||
|---|---|---|---|---|---|---|---|---|
| 84 165 K3 | 18.3 W | 1879 lm | DALI | 55° | 535 x 82 | 78 | 130 | |
| 84 166 K3 | 35.6 W | 3654 lm | DALI | 55° | 1025 x 82 | 78 | 130 | |
| 84 167 K3 | 53.0 W | 5723 lm | DALI | 55° | 1520 x 82 | 78 | 130 |
| LED | PSU | β | A | B | C | |||
|---|---|---|---|---|---|---|---|---|
| 84 162 K3 | 18.3 W | 1611 lm | DALI | 46/53° | 535 x 82 | 78 | 130 | |
| 84 163 K3 | 35.6 W | 3234 lm | DALI | 46/53° | 1025 x 82 | 78 | 130 | |
| 84 164 K3 | 53.0 W | 4907 lm | DALI | 46/53° | 1520 x 82 | 78 | 130 |
