As a modular system, BEGA system bollards enable luminaire heads and bollard tubes to be combined with various additional functions.
In lighting systems, luminaires of different heights or with additional functions, but with the same design and lighting technology, are often required. As part of our system bollard range, we offer bollard tubes with built-in floodlights, emergency lighting batteries, motion and light sensors, control modules, BEGA Vehicle Blocker® drive-through protection, lockable sockets and charging module inserts for electric vehicles.
In addition to aluminium bollard tubes, we also offer component-free bollard tubes, made of a combination of cast aluminium and Accoya® wood. Simply order the bollard head and the desired bollard tube. The two modules can be quickly and easily connected to one another during installation.

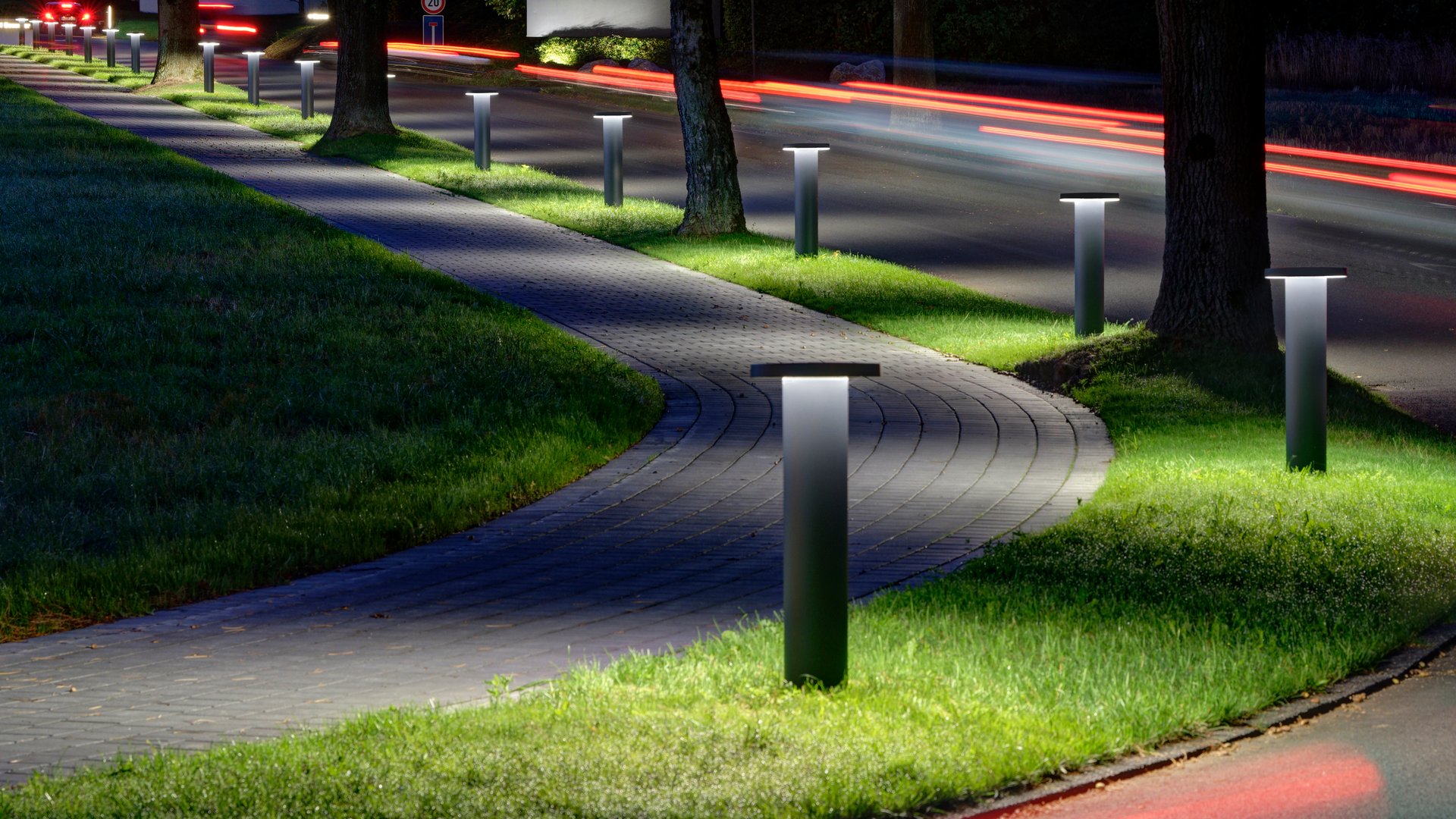

These luminaire heads from our modular system bollard range emit their fully shielded light symmetrically through 360° around the installation point with a high degree of uniformity. Luminaires for the illumination of pathways, open spaces and driveways.
We supply these luminaires optionally with BEGA BugSaver® technology for controlling the colour temperature between 3000 Kelvin and an amber shade with a greatly reduced blue light component (similar to 1800 Kelvin) - for use in near-natural environments for additional environmental protection.
Technical data
Protection class IP 65 BEGA Thermal Management®
Cast aluminium, aluminium and stainless steel BEGA Unidure® coating technology Safety glass Reflector made of pure anodised aluminium
DALI-controllable power supply units
These BEGA system bollards are equipped with an alignable mounting system. It can either be bolted onto a foundation provided by the customer, or onto a BEGA anchorage unit. Please order anchorage units as separate accessories.
20-year availability guarantee for replacement parts and LED modules
| Ø | LED | PSU | A | B | |||
|---|---|---|---|---|---|---|---|
| 85 048 K3 | 140 | 9.0 W | 940 lm | on/off | 280 | 35 | |
| 85 063 K3 | 190 | 18.0 W | 1924 lm | DALI | 380 | 45 | |
| 85 049 K3 | 265 | 27.0 W | 2895 lm | DALI | 530 | 60 |
| Ø | LED | PSU | A | B | |||
|---|---|---|---|---|---|---|---|
| 85 068 | 190 | 18.1 W | 1781 lm | DALI | 380 | 45 | |
| 85 069 | 265 | 22.0 W | 2335 lm | DALI | 530 | 60 |
| Ø | Connection box | H | |||
|---|---|---|---|---|---|
| 99 614 | 140 | without components · low | Connecting terminals 3 x 4 | 350 | |
| 99 620 | 140 | without components · high | Connecting terminals 3 x 4 | 660 | |
| 84 476 | 140 | without components · made of Accoya® wood | Connecting terminals 3 x 4 | 660 | |
| 99 615 | 190 | without components · low | Connecting terminals 3 x 4 | 365 | |
| 99 622 | 190 | without components · high | 71 084 | 815 | |
| 84 464 | 190 | without components · made of Accoya® wood | 71 084 | 815 | |
| 99 619 | 265 | without components · low | Connecting terminals 3 x 4 | 375 | |
| 99 624 | 265 | without components · high | 71 084 | 875 | |
| 84 465 | 265 | without components · made of Accoya® wood | 71 084 | 875 |
| Ø | Connection box | H | |||
|---|---|---|---|---|---|
| 84 759 | 140 | with PIR motion and light sensor | 71 084 | 660 | |
| 84 915 | 140 | with 1 safety socket Type F | 70 629 | 660 | |
| 84 833 K3 | 190 | with LED floodlight 23.0 W · 2500 lm · ß = 18° | 71 084 | 815 | |
| 84 760 | 190 | with PIR motion and light sensor | 71 084 | 815 | |
| 84 170 | 190 | with PIR motion sensor + light sensor · DALI | 71 084 | 815 | |
| 84 634 | 190 | with single emergency lighting battery | 71 601 | 815 | |
| 84 916 | 190 | with 1 safety socket Type F | 70 629 | 815 | |
| 99 626 | 190 | with 2 safety sockets 250 V · type F | 70 869 | 815 | |
| 84 998 | 190 | Water connection G½ | Connecting terminals 5 x 4 | 815 | |
| 84 761 | 265 | with PIR motion and light sensor | 71 084 | 875 | |
| 84 173 | 265 | with PIR motion sensor + light sensor · DALI | 71 084 | 875 | |
| 84 636 | 265 | with single emergency lighting battery | 71 601 | 875 | |
| 84 623 | 265 | Drive-through protection up to 7.5 t · 50 km/h · Foundation height 800 mm | 70 632 | 875 | |
| 84 303 | 265 | Drive-through protection up to 7.5 t · 50 km/h · Foundation height 380 mm | 70 632 | 875 | |
| 99 627 | 265 | with 2 safety sockets 250 V · type F | 70 869 | 875 | |
| 84 095 | 265 | with installation inserts | – | 1150 | |
| 84 096 | 265 | without installation inserts with 2 fuse boxes, 8-piece | – | 1150 | |
| 84 999 | 265 | Water connection G¾ | Connecting terminals 5 x 4 | 1150 | |
| 85 029 | 265 | with calibration-compliant charging unit for electric vehicles | – | 1150 |
BEGA system bollards
Our modular bollard concept
The BEGA system bollards form part of our new modular bollard concept. The technical requirements that luminaires have to meet are increasing all the time, especially in the planning of lighting systems of all shapes and sizes. For example, it should be possible to switch luminaires by means of motion sensors, to secure traffic routes with emergency lighting in the event of a power failure, or to fit them with additional sockets or floodlights.
Their robust mechanics allow optional combinations of bollard heads and bollard tubes with integrated add-on components.
Simply order the luminaire head and combine it with the bollard tube of your choice. Both modules can be connected quickly and easily during installation.
Eco-friendly illumination:BEGA BugSaver ®
These luminaires are also available with BEGA BugSaver ® technology. They allow a switchover of the colour temperature from 3000 Kelvin to the light colour Amber (similar to 1800 Kelvin). Reducing the blue light component significantly decreases the attraction of light to nocturnal animals and specifically insects. Detailed information about BEGA BugSaver ®
