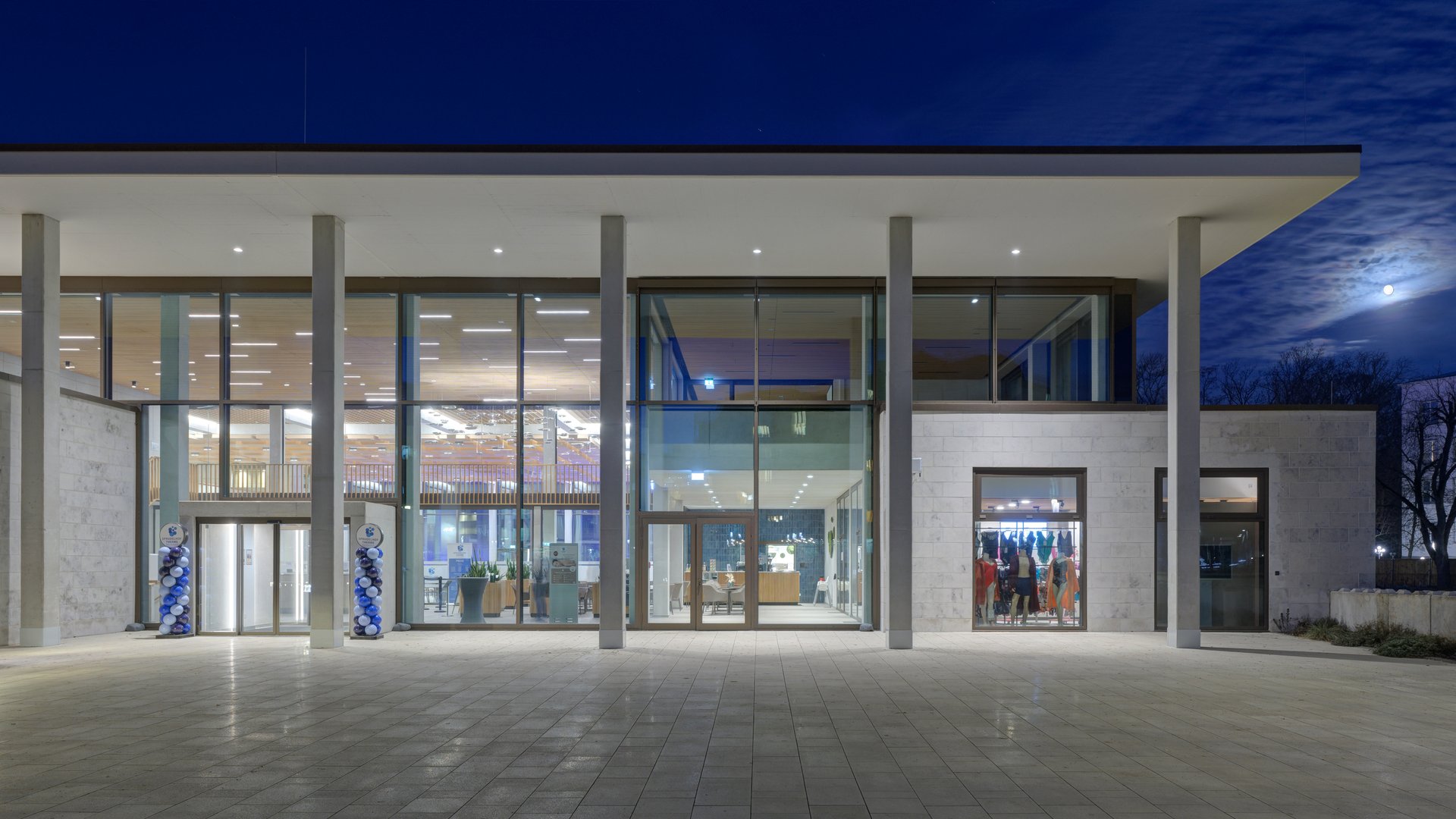

We have developed these compact recessed ceiling downlights specially for flush installation in unplastered and plastered concrete ceilings. Suitable installation housings are available for the respective installation situations, including for installation in precast ceilings and in-situ concrete ceilings. Upon completion of the ceiling, the luminaires are inserted into the recessed housing via a bayonet closure. BEGA compact downlights, which boast both unmistakable lighting technology and an intelligent installation system. Luminaires that make a fascinating visual impression, thanks in particular to the flush integration of the glass in concrete ceilings.
The external power supply units are included in the scope of delivery and are connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Technical data
Protection class IP 65 BEGA Thermal Management®
Cast aluminium, aluminium and stainless steel Safety glass Reflector surface made of pure aluminium Optical silicone lens
External power supply units included DALI-controllable
Luminaires with symmetrical and flat beam light distribution: BEGA Hybrid Optics®
20-year availability guarantee for replacement parts and LED modules
Please note: An installation housing is always required for installing the luminaires. Please order the appropriate installation housing for the installation of the luminaire and power supply unit according to your on-site use.
The required installation depths can be found in the instructions for use for these luminaires.
| LED | PSU | β | A | B | |||
|---|---|---|---|---|---|---|---|
| 24 482 K3 | 19.0 W | 2258 lm | DALI | 20° | 135 | 195 | |
| 24 485 K3 | 28.0 W | 2854 lm | DALI | 14° | 155 | 230 |
| LED | PSU | β | A | B | |||
|---|---|---|---|---|---|---|---|
| 24 496 K3 | 19.0 W | 2224 lm | DALI | 30° | 135 | 195 | |
| 24 497 K3 | 28.0 W | 2845 lm | DALI | 25° | 155 | 230 |
| LED | PSU | β | A | B | |||
|---|---|---|---|---|---|---|---|
| 24 498 K3 | 19.0 W | 2086 lm | DALI | 72° | 135 | 195 | |
| 24 510 K3 | 19.0 W | 1875 lm | DALI | 86° | 135 | 195 | |
| 24 484 K3 | 28.0 W | 2753 lm | DALI | 63° | 155 | 230 | |
| 24 487 K3 | 28.0 W | 2567 lm | DALI | 86° | 155 | 230 |
| LED | PSU | β | A | B | |||
|---|---|---|---|---|---|---|---|
| 24 512 K3 | 13.2 W | 1212 lm | DALI | 63/64° | 135 | 195 | |
| 24 483 K3 | 19.0 W | 1902 lm | DALI | 70/67° | 155 | 230 |
| LED | PSU | β | A | B | |||
|---|---|---|---|---|---|---|---|
| 24 514 K3 | 19.0 W | 2000 lm | DALI | 100/57° | 135 | 195 | |
| 24 486 K3 | 28.0 W | 2600 lm | DALI | 105/58° | 155 | 230 |
➀ Two opposing openings for installation conduits
➁ Installation housing made of aluminium with stainless steel installation collar
➂ A bracket for the DALI power supply unit enables convenient overhead installation.
➃ DALI-controllable power supply unit BEGA Thermal Management ®
➄ Upon completion of the ceiling, the luminaires are quickly and easily inserted into the installation housing via a bayonet closure.
➅ Optical silicone lens
➆ Reflector surface made of pure aluminium
➇ Symmetrical, asymmetrical and flat beam light distribution
